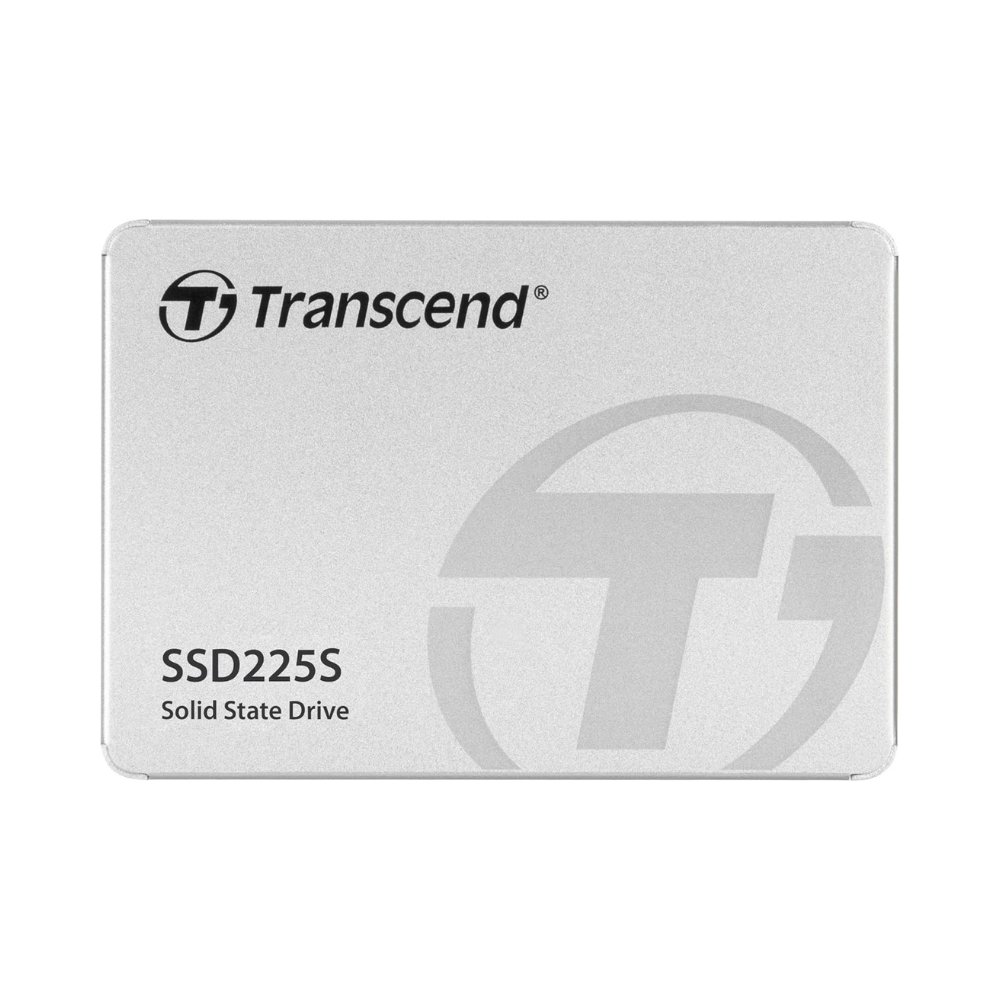

Transcend SATA SSD225S Internal Solid-State Drive

The best choice for a computer upgrade

SSD225S is a 2.5″ SATA SSD designed for both desktop and laptop computers. With one easy installment, you can enjoy fast application processing times, greatly enhancing your computer performance. With up to 2TB of storage capacity, you can save tons of photos, music files, and other media files.

Performance boost for everyday computing

Taking full advantage of the SATA III 6Gb/s interface and top-notch 3D NAND flash, the SSD225S strengthens its speeds with the SLC caching technology, delivering exceptional transfer speeds of up to 550MB/s read and 500MB/s write.

Guaranteed endurance and reliability

Transcend’s SSD225S offers great Terabytes Written (TBW) values (up to 720 TB) indicating the total amount of data you can write into the drive over its lifetime.

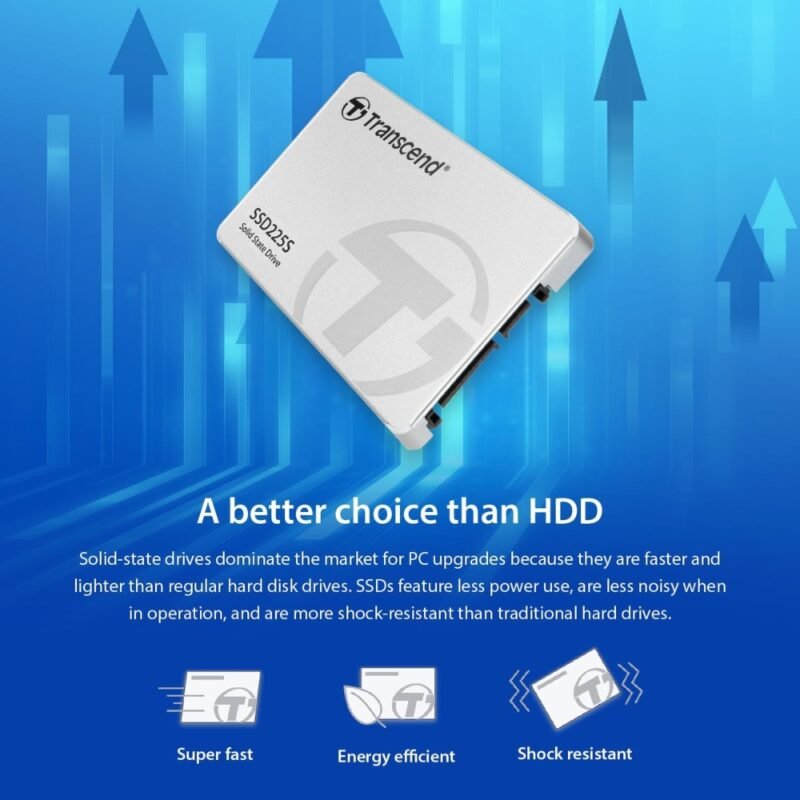

A better choice than HDD

Solid-state drives dominate the market for PC upgrades because they are faster and lighter than regular hard disk drives. SSDs feature less power use, are less noisy when in operation, and are more shock-resistant than traditional hard drives.

Guaranteed quality

Transcend’s solid state drives are built to the highest standards and are rigorously tested, offering outstanding quality, performance, and reliability.

Specifications

Appearance
Dimensions	100 mm x 69.85 mm x 6.8 mm (3.94″ x 2.75″ x 0.28″)
Weight	45 g (1.59 oz)
Storage
Flash Type	3D NAND flash
Capacity	250GB/ 500 GB/ 1 TB/ 2 TB
Operating Environment
Operating Temperature	0°C (32°F) ~ 70°C (158°F)
Operating Voltage	5V±5%
Performance
Sequential Read/Write (CrystalDiskMark)	2 TB Up to 550/460 MB/s 1 TB Up to 550/500 MB/s 500 GB Up to 530/480 MB/s 250 GB Up to 500/330 MB/s
4K Random Read/Write (IOmeter)	2 TB Up to 55,000/80,000 IOPS 1 TB Up to 55,000/72,000 IOPS 500 GB Up to 55,000/75,000 IOPS 250 GB Up to 40,000/75,000 IOPS
Terabytes Written (TBW)	2 TB 720 TBW 1 TB 360 TBW 500 GB 180 TBW 250 GB 90 TBW
Mean Time Between Failures (MTBF)	2,000,000 hour(s)
Drive Writes Per Day (DWPD)	0.3 (3 yrs)
Note	Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses the endurance under the highest capacity. For Mac users please visit our Apple Solutions here.
Warranty
Certificate	CE/ UKCA/ FCC/ BSMI/ KC/ RCM
Warranty	Three-year Limited Warranty
Warranty Policy	Please click here for more information about the Transcend Warranty Policy. Warranty does not apply when SSD Scope’s lifetime indicator displays 0% within the warranty coverage.
Package
Package Contents	Full unit
System Requirement
Operating System	Microsoft Windows 7 or later Linux Kernel 2.6.31 or later
Technology
TRIM & NCQ Command
S.M.A.R.T.
DDR3 DRAM Cache	–
Advanced Garbage Collection
DevSleep Mode
RAID Engine	–
LDPC Coding
